Forging Process Details
Forging, a metal shaping technique using compressive, localized forces,has been a staple metal fabrication technique since the time of the ancient Mesopotamians. Since its origins in the fertile crescent, forging has experienced significant changes, resulting in a more efficient, faster andmore durable process. This is because today, forging is most commonly performed with the use of forging presses or hammering tools that are powered by electricity, hydraulics or compressed air
Forging Parts
- Flanges
- Auto parts
- Valve Parts
- Connecting Road
- Bearings
- Gears
- Crank Shaft,etc...

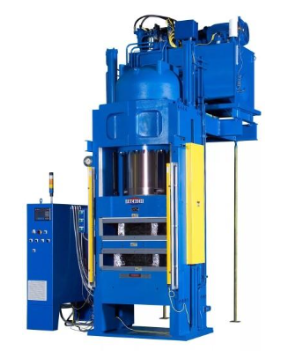

Forging Machine Capacity
| MACHINE CAPACITY | 0.100 Kg To 150 Kg |
| HAMMER DETAILS | 2.5 Tone Hammer 4.0 Tone Hammer |

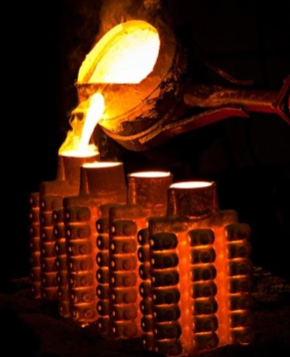

Casting Process Details
Casting,manufacturing is a process in which liquefied material, such a smolten metal,is poured into the cavity of a specially designed mold and allowed to harden. After solidification, the workpiece is removed from the mold to undergo various finishing treatments or for use as a final product.Casting methods are typically used to create intricate solid and hollow shapes,and cast products are found in a wide range of applications, including automotive components, aerospace parts, etc
Casting Parts
Defense Parts Manufacturers in India- Casting and Forgings
- Valve Parts
- Pipe parts
- Auto Parts
- Body Parts
- Joint Parts
- Gears Parts
- General Engineering parts
- Food Processing Equipment parts
- Fittings
- Lifting parts
- Auto parts
- Orthopaedic implant parts
- Knuckle Joint, etc...
Casting Job Capacity
| JOB WEIGHT | 0.010 Kg to 150 Kg Per Pcs. |
| JOB DIE | 750 × 750 × 750 mm Max |
Machining Process Details
During the manufacturing of a part, a variety of machining operations and processes are needed to remove excess material.These operation sare usually mechanical and involve cutting tools, abrasive wheels, anddiscs,etc.Machining operations maybe performed on stock mill shapes such as barsand flats or they may be executed upon parts made by previous manufacturing methods such as casting or welding.
Machining Shop Details
.png)

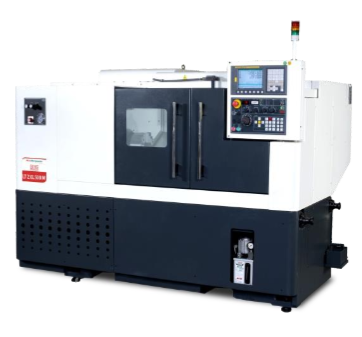

CNC MACHINE -14 Nos.
The term CNC stands for 'computer numerical control', and the CNC machining definition is that it is a subtractive manufacturing process which typically employs computerized controls and machine tools to remove layers of material from a stock piece
WORK CAPACITY IN MACHINE
| CNC Machine capacity | Diameter ø = 5 mm to 600mm |
| CNC Length Capacity | 300 mm to 1000mm |
| CNC Weight Capacity | 150 Kg.Max |

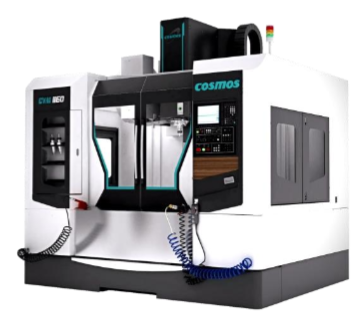

VMC MACHINE ROTARY TABLE -5 Nos.
A VMC is a machine with a CNC (Computer Numerical Control) controller. As mentioned, the cutting head in this milling machine is vertical and is a particular type of milling machine where the spindle runs in a vertical axis known as the “z” axis.They are typically enclosed and most often used for cutting metal.
WORK CAPACITY IN MACHINE
| CVM 1060 | 1200 x 600 x600 |
| Rotary table | 250 ø capacity -400 mm OD Machining |
| VMC weight capacity | 1000Kg |
.png)
Process Of Measuring Instruments
Instruments are used to measure and control the condition of process streams as they pass through a Plant.Instruments are used to measure and control process variables such as: Temperature, Flow, Level, Pressure, Quality.
Dimensional Measuring Instruments
- 0-150mm Digital Vernier Baker
- 0-300mm Digital Vernier Baker
- 0-600mm Vernier Baker
- 0-25mm Micro Meter
- 25-50mm Micro Meter
- 0-300mm Height Gauge
- 0-300mm Depth Gauge
- Inside Outside Caliper
- Inside Out sideradius Gauge
- Combination Set
- Surface Plate
- AIR Gauge
- Slip Gauge
- Bore gauge
Testing Instruments And Facility
MECHANICAL TESTING

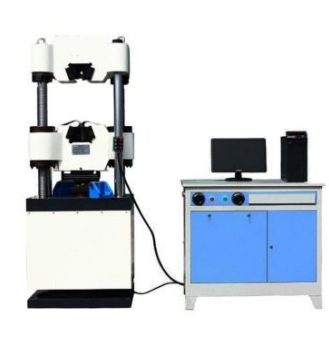

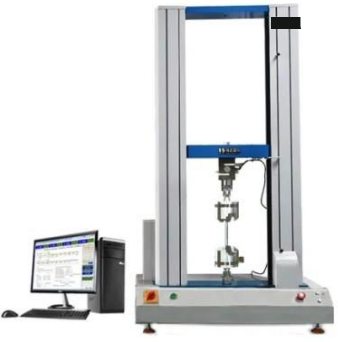

- Universal Testing machine 20KN capacity with electronic extensor metre
- Impact Testing Impact Testing Machine up to 300, Test temp range -Ambient to -196 C.

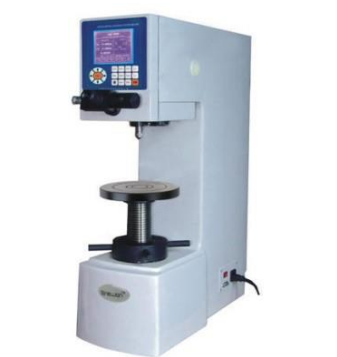

- HardnessTestingBrinell & Rockwell HardnessTester.
- Inter Granular CorrosionTest: Unit forIGCT practice ABE C &F (Done in NABL)
- Microscope: Microstructures Examination (Done in NABL Lab if customer required)
NON-DESTRUCTIVE TESTING
- Dye (Liquid) Penetrate Test
- Magnetic Particle Testing
- Radiography Testing (Done in NABL Lab if customerrequired)
- UltrasonicTesting (Done in NABL Lab if customer required)
.png)
.png)
.png)

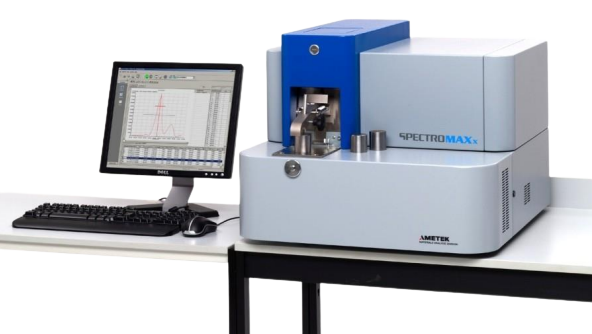

Spectro Machine
-no-bg.png)
